Roofing

Aluminium with its outstanding characteristics of light-weight durability, high strength, high heat reflectivity and low thermal emissivity, makes it most suitable material for roofing sheets. It has been used widely for factories, poultry farms, mills, power stations, warehouses and chemical plants. Aluminium does not contaminate, making it most suitable for food and pharmaceutical industries. Aluminium, being classified as a non-combustible material and rated Class 0, is accepted for roof covering without reservation, being rated as EXT.SAA to BS 476 Part3: 1958

Length:

Length of up to 30 meters are produced and transported to site according to customers’ requirements.

Roofing Profile:

Dura 7C	- Effective width : 568mm - Overall width : 595mm - Pitch : 76.20mm - Depth of trough : 595mm - Thickness : 0.21mm - Length : 6ft , 7ft , 8ft , 9ft , 10ft & 12ft (standard), up to 20 meter - Length tolerance : +/- 5mm

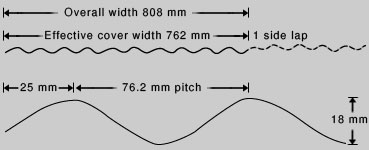

Dura 10C	- Effective width : 762mm - Overall width : 808mm - Pitch : 76.2mm - Depth of trough : 18mm - Thickness : 0.21mm,0.25mm,0.30mm,0.40mm,0.50mm,0.60mm, 0.70mm - Length : 6ft , 7ft , 8ft , 9ft , 10ft & 12ft (standard ), up to 20meter - Length tolerance : +/- 5mm
Dura Span	- Effective width : 762mm - Overall width : 808mm - Pitch : 190.50mm - Depth of trough : 25mm - Thickness : 0.21mm,0.25mm,0.30mm,0.40mm,0.50mm,0.60mm, 0.70mm - Length : 6ft , 7ft , 9ft , 10ft & 12ft (standard), up to 20meter - Length tolerance : +/- 5mm - Profile drawing:
Dura Deck	- Effective width : 915mm - Overall width : 950mm - Pitch : 190.50mm - Depth of trough : 37mm - Thickness : 0.50mm,0.60mm,0.70mm, 0.90mm, 1.00mm - Length : 6ft , 7ft , 9ft , 10ft & 12ft (standard), up to 20meter - Length tolerance : +/- 5mm
Dura High Ribbed	- Effective width : - Overall width : - Pitch : - Depth of trough : - Thickness : - Length : 6ft , 7ft , 9ft , 10ft & 12ft (standard), up to 20meter - Length tolerance : +/- 5mm
